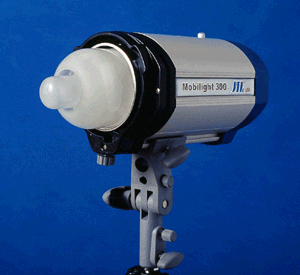

 Mobilight™
The JTL Mobilight is designed like the Versalight series
for on-location and studio photographers, but the Mobilight series can
vary its power source—it can draw its power from either a battery
or an electric outlet, so it is not bound by the physical limits of
a wire or cord. The rechargeable JTL battery pack can support the
Mobilight 200 for over 150 full power flashes, and the Mobilight 300
for over 120 full power flashes.
This series is available in 105-120V, 60Hz and
220-240V, 50Hz (special order only).
Features:
- AC/DC power supply
- Continuous output power setting adjustment
- Replaceable flash tube with diffuser
- +/-0.1EV output power regulation
- +/-0.1F stabilizer for output precision
- Built-in 360° photo slave
- Standard recharge audio-signal
- Car lighter adaptor
- Low battery alarm
- Quick battery recharging
- Patented sliding-bracket
- Weight balanceable stand fixture and much more
- Built-in thermostat to avoid overheating

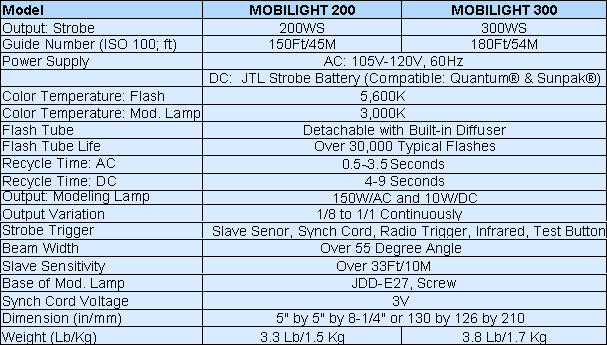

Specification
Light

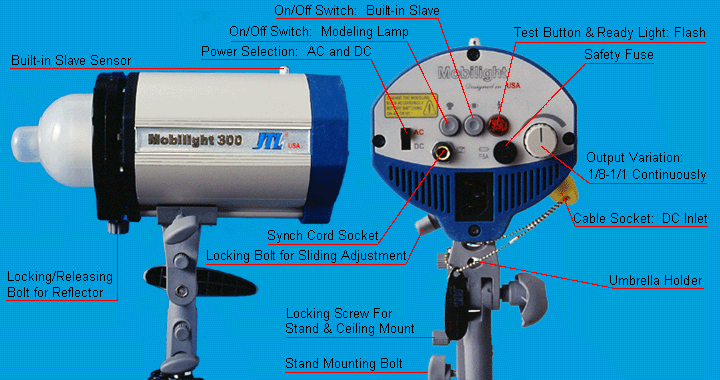

Body & Posterior Control Panel
JTL Battery Pack
 |

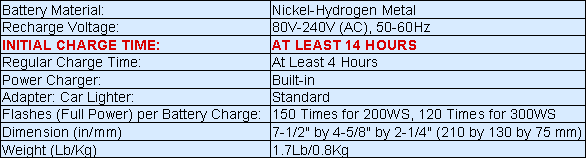

Battery Features
- Non-Memory Nickel-Hydrogen Metal Battery
- Non-Toxic, Non-Polluting
- 120 Flashes for 300WS in Full Power
- 150 Flashes for 200WS in Full Power
- Car Lighter Rechargeable
- Built-in AC/DC Power Charger
- Multi-Voltage Inlet: AC 80V-240V
- Compatible with Quantum® Turbo or Sunpak® TR2000
- Portable Size
- Light Weight
Specifications
 |

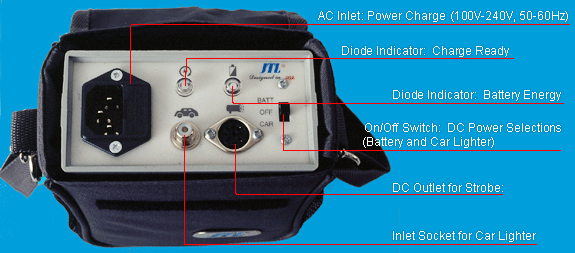

Control Panel: JTL Battery Pack
 |
|
| Code: 2407-1 |
Mobilight 300 W/JTL Battery Pack |
| Output Power: |
300WS |
| Power Supply: |
AC: 105-120V,60Hz
DC: JTL Strobe Battery (Compatible:
Quantum®& Sunpak®) |
| Guide No.(ISO 100, Ft): |
180 |
| Output Variation: |
1/8 - Full Continuous Output Adjustment |
| Synch-cord Voltage: |
3V |
|
| Code: 2406-1 |
Mobilight 200 W/JTL Battery Pack |
| Output Power: |
200WS |
| Power Supply: |
AC: 105-120V,60Hz
DC: JTL Strobe Battery (Compatible:
Quantum®& Sunpak®) |
| Guide No.(ISO 100, Ft): |
150 |
| Output Variation: |
1/8 - Full Continuous Output Adjustment |
| Synch-cord Voltage: |
3V |
|

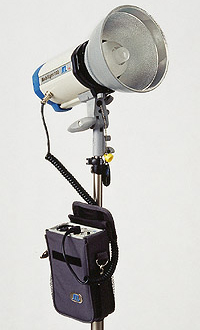

Each Unit of Mobilight (Code: 2407-1
or 2406-1) Contains:
| Code |
Description |
Qty |
| 2403-1 or 2402-1 |
Mobilight Body |
1 |
| 2408-1 |
JTL Battery Pack |
1 |
| 2213 or 2212 |
Detachable Flash Tube |
1 |
| 2519 |
Modeling Lamp for AC, 150W |
1 |
| 2417 |
Modeling Lamp for DC, 10W-9V |
1 |
| 2223 |
7" Standard Metal Reflector |
1 |
| 2109 |
15' AC Power Cable |
1 |
| 2521 |
Synch Cord |
1 |
| 2419 |
DC Cable |
1 |
| 2420 |
Car Lighter Cable |
1 |
| 2421 |
Battery Recharge Cable |
1 |
| |
Owner's Manual & Warranty Card |
1 |
Accessories

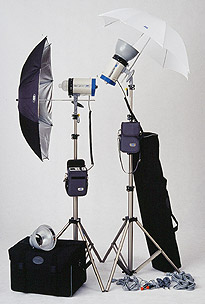

| Mobilight Kit |
 |
| Code: 92603-1
DL-600 Mobilight Kit |
| Code |
Description |
Qty |
| 2407-1 |
Mobilight 300 Unit |
2 |
| 5013 |
800 Air Cushioned Stand |
2 |
| 4021 |
36" Silver Umbrella |
1 |
| 4011 |
33" White Umbrella |
1 |
| 8221 |
Studio Light Case |
1 |
| 8224 |
Stand Carrying Bag |
1 |
 |
|
