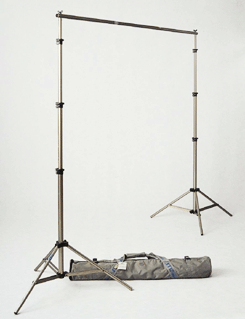

Background Supporting System
The JTL background support system was designed with versatility and ease of use in mind. Our patented crossbar connection allows for effortless setup and disassembling, so you can easily use it at several different locations. It also prevents sagging in the middle of the bar, ensuring the bar's firm, straight hold. Each stand comes with a convenient carrying bag, for further transport ease.

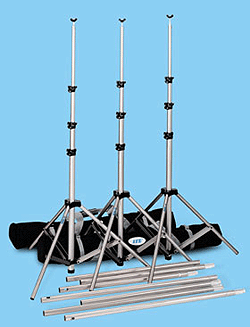

Code: 5025 B-1020 Background Support
Bar Section:	7
Max. Width:	20.6'
Min. Width:	2 Bars & 6'
Max. Height:	10.6'
Net Weight:	28LB
Gross Loading:	75LB
Base Diameter:	40"

Cross Bar for B-1020:
1 x One end with hole for stand & the other end with male adapter
4 x One end with male adapter & the other end with female adapter
1 x One end with hole for stand & the other end with female adapter
1 x One end with male adapter, a hole for center stand & the other end with female adapter

Code: 5024 B-1012 Background Support
Bar Section:	4
Max. Width:	12.6'
Min. Width:	2 Bars & 6.3'
Max. Height:	10.6'
Net Weight:	18LB
Gross Loading:	55LB
Base Diameter:	40"

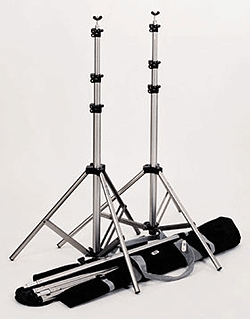

Code: 5023 B-909 Background Support
Bar Section:	4
Max. Width:	9.6'
Min. Width:	2 Bars & 4.8'
Max. Height:	9.6'
Net Weight:	14LB
Gross Loading:	45LB
Base Diameter:	40"

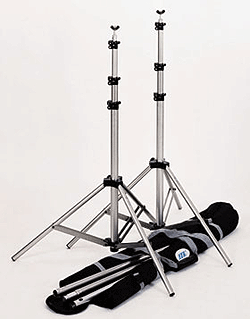

Code: 5020 B-900 Background Support
Bar Section:	3
Max. Width:	9'
Min. Width:	2 Bars & 6'
Max. Height:	9'
Net Weight:	13LB
Gross Loading:	30LB
Base Diameter:	40"

Accessories for Background Support

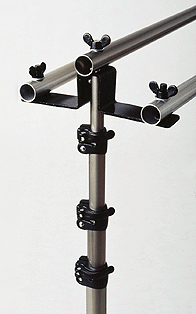

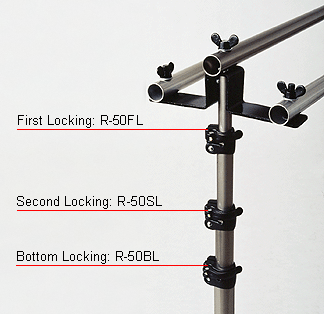

Code: 6009 2 Piece Triple Bar Holder Set: This is a metal holder you can attach to the top of the background stand to provide support for two additional cross bar sets, for a stand that can hold up to total of three paper or muslin backgrounds at the same time.

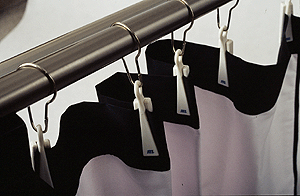

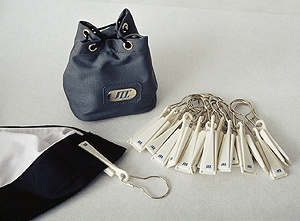

	Code: 5021 20 Pieces Backdrop Clip Set: Clip the backdrop material onto each clip—each clip has a metal hook for the background bar to slide through. You can use these clips to hang up as many different backdrops as you'd like (up to the maximum weight the stand can hold).

Code: 1024 Clamp:
Use the clamps to secure the backdrop onto the background stand by wrapping the backdrop around the bar and clamping it onto the bar with the clamp.

Carry Case

Code: 8227 Carry Case for B-900 & B-909
Code: 8228 Carry Case for B-1012 & B-1020

Cross Bar Set for JTL Background Support
Working with the triple bar holder, you can use the cross bar set to add extra cross bars to your background support system.

Code: 5024-1 4 Cross Bars for B-1012, 12'6"
1 x One end with hole for stand & the other end with male adapter
2 x One end with male adapter & the other end with female adapter
1 x One end with hole for stand & the other end with female adapter

Code: 5023-1 4 Cross Bars for B-909, 9'6"
1 x One end with hole for stand & the other end with male adapter
2 x One end with male adapter & the other end with female adapter
1 x One end with hole for stand & the other end with female adapter

Code: 5020-1 3 Cross Bars for B-900, 9'
1 x One end with hole for stand & the other end with male adapter
1 x One end with male adapter & the other end with female adapter
1 x One end with hole for stand & the other end with female adapter

Parts for Background Support

Click On Pictures To Enlarge
	Photo showing the base of the center pole section touching the ground.
	Large oversized knob for adjusting the top of the legs on the independent floating center pole section
	Large oversized knob for adjusting the base of the crossbars on the independent floating center pole section
	Large oversized 3/4 of an inch leg bracing (struts) with 3/4 of an inch legs for extra support and maximum stability. All three legs are bolted together. (We do not use rivets)
	90 degree professional quick lock/unlocking system - shown in the UNLOCKED position. Each 90 degree professional quick lock/unlocking is spring loaded.
	90 degree professional quick lock/unlocking system - shown in the LOCKED position. Each 90 degree professional quick lock/unlocking is spring loaded.
	Rubber-tip on the bottom of the independent floating center pole section provides a quiet and no-slip movement when moving or rearranging the stand.
	Rubber-tip on each leg of the light stand provides a quiet and no-slip movement when moving or rearranging the stand.
	Each end of the crossbar is designed to connect with the backdrop stand and be secured with a wing nut. See the next photo below
	Each end of the crossbar is designed to connect with the backdrop stand and be secured with a wing nut.
	Unique three-section crossbar with quick locking system is designed to permit its use as a two-section or three-section crossbar. Additional crossbar sections can be purchased to extend the length of the crossbar.
	Unique three-way adaptor to hold a second and third crossbar.

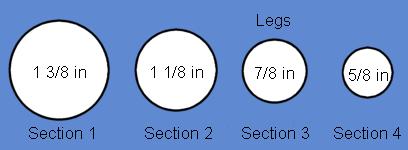

Here is the actual diameter/size of this Backdrop System stand and legs.
