DigiFirer Radio Trigger & Receiver System
Applications
The
JTL DigiFirer is a digitalized radio trigger system designed for photographic
studios and on-location work. It is composed of two units: a radio
trigger and a digital receiver, both easily installed on any type
of light. The DigiFirer can be used with a variety of studio flashes,
strobes (AC & DC), and monolights (monobloc). The JTL DigiFirer
will eliminate flash slave interference among strobe lights in your
studio.
Features
1. Eight (8) optional channels for up to eight groups of strobe lights.
It may be 1 to n lights in each individual group (channel).
2. A triggering speed of up to 1/1500 second
3. Digital display of the locked channel number for each receiver
4. A CPU controlled idle function for energy conservation
5. A trigger battery with a lifetime of up to one year, or over 20,000
triggers
6. Ultra low triggering voltage (5v) for camera safety
7. Large test button on Trigger, and reset on Receiver
8. Fine gauges on trigger to dial channels
9. LED signals for each trigger/reception
10. Receiver adapters for the synch cord outlets of different strobes |

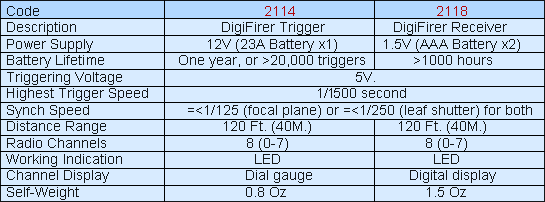

Technical Specifications

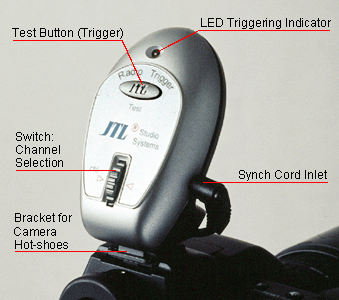

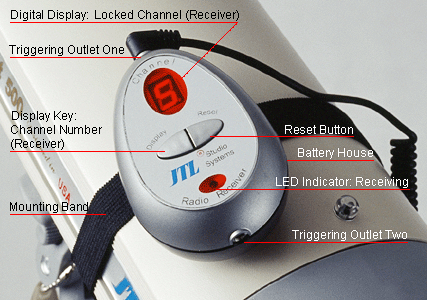

Control Panel – Trigger & Receiver
 |
Code: 2224

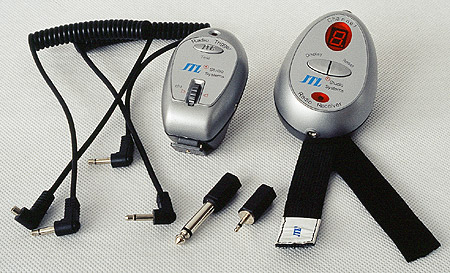

DigiFirer Radio Trigger & Receiver Set
Set Contents:
| Radio Trigger (Code: 2114) |
1 |
| (Battery Installed: 23A) |
1 |
| Radio Receiver (Code: 2118) |
1 |
| Synch Cord Adapter 3.5-6.35mm |
1 |
| Synch Cord Adapter 3.5-2.5mm |
1 |
| Synch Cord (for camera) |
1 |
| Synch Cord (for strobe light) |
1 |
| AAA Battery for Receiver |
2 |
| Receiver Fixture W/Band |
1 |
| Owner's Manual |
1 |
|
1. The synch cords, adapters, AAA batteries and fixture will not be included
when ordering DigiFirer Trigger (2114) only.
2. The synch cords, adapters, AAA batteries and fixture will be included
when ordering DigiFirer Receiver (2118) only.
|
